R+Python组合拳可能是分析SCENIC最好的方式
一、写在前面
在利用SCENIC进行转录因子共表达网络预测时有一步非常头疼的runGenie3，这一步基于随机森林算法推断基因调控网络(GRN)，输出结果包含TF-基因对及其调控强度的矩阵。这一步不仅耗费很多内存，并且还不支持在R中进行并行计算，通常1W个细胞的计算时间就能达到一周以上，甚至经常运行到一半R崩溃了，显然不能满足大家日常生产的需求。但在python中的grnboost2可以利用分布式并行计算K可以大大缩短这一过程的计算时间:比R版本快几十倍| Pyscenic单细胞转录因子预测，毛病就是PySCENIC会略去很多SCENIC的中间输出结果与可视化，这显然是不能被接受的 。在SCENIC单细胞转录因子预测学习手册的教程中我们也提到过加速方法:，可以直接在R中利用reticulate包调用python库arboreto.algo来完成grnboost2的计算过程。
# 基因共表达网络计算
mymethod <-'grnboost2'# 'grnboost2'
library(reticulate)
if(mymethod=='runGenie3'){
runGenie3(exprMat_filtered_log, scenicOptions)
}else{
arb.algo =import('arboreto.algo')
tf_names =getDbTfs(scenicOptions)
tf_names = Seurat::CaseMatch(
search = tf_names,
match =rownames(exprMat_filtered))
adj = arb.algo$grnboost2(
as.data.frame(t(as.matrix(exprMat_filtered))),
tf_names=tf_names, seed=2025L
)
colnames(adj) =c('TF','Target','weight')
saveRDS(adj,file=getIntName(scenicOptions,
'genie3ll'))

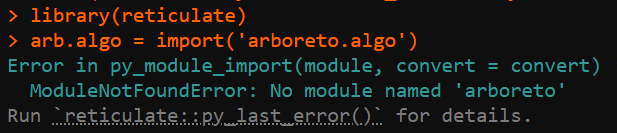

}问题是，上面的这个R代码框经常会遇到arboreto加载失败，要么找不到:
![[图片]](https://i-blog.csdnimg.cn/img_convert/01d0bdbadaf5021679c4344acb94b791.png)

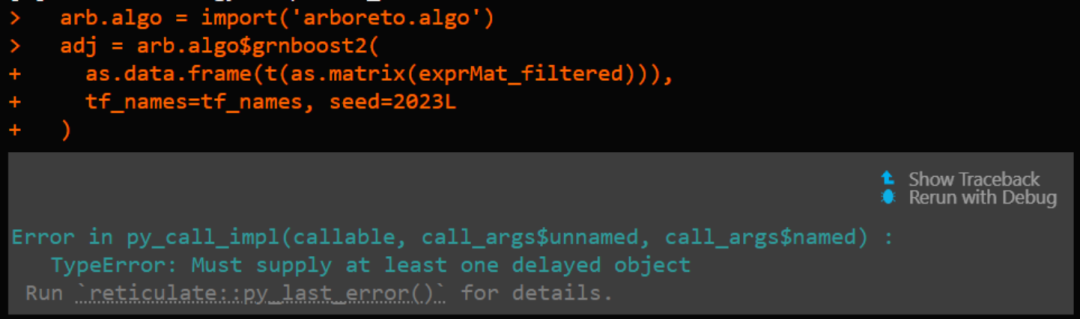

要么依赖库出问题

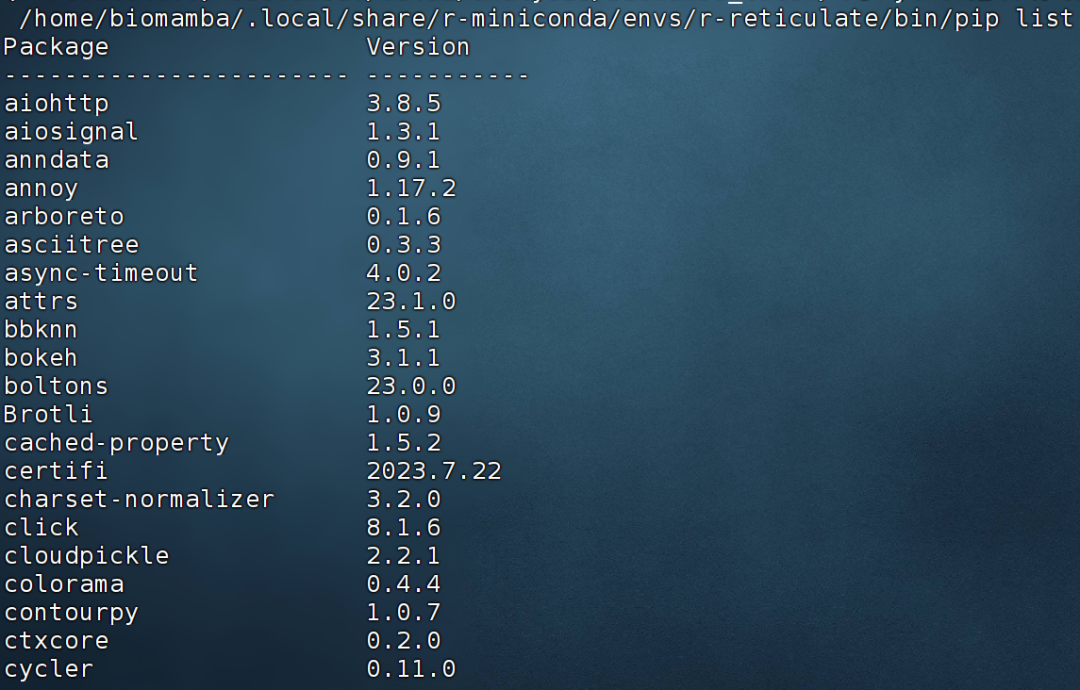

reticulate::use_python('/home/biomamba/.local/share/r-miniconda/envs/r-reticulate/bin/python') > arb.algo = import('arboreto.algo') Error in py_module_import(module, convert = convert) : ImportError: /usr/lib/x86_64-linux-gnu/libstdc++.so.6: version `GLIBCXX_3.4.29' not found (required by /home/biomamba/.local/share/r-miniconda/envs/r-reticulate/lib/python3.8/site-packages/pandas/_libs/window/aggregations.cpython-38-x86_64-linux-gnu.so) Run `reticulate::py_last_error()` for details.或者R与Python数据不兼容的问题：
![[图片]](https://i-blog.csdnimg.cn/img_convert/b2d44f7c0e61b5d3b09456cca59e387a.png)

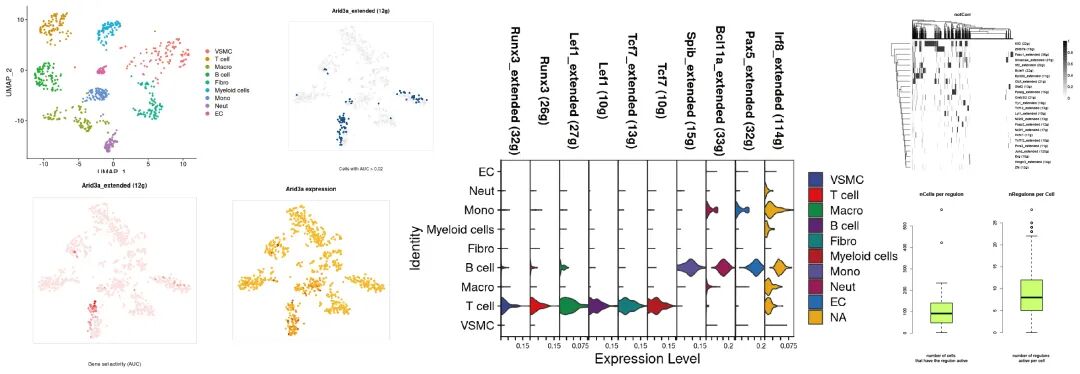

所以，最稳妥的办法是R和Python各忙各的，即生成exprMat_filtered后导出到本地，在纯粹的Python中完成。可视化集锦如下：
![[图片]](https://i-blog.csdnimg.cn/img_convert/e7165c1c11ad05970faa6c13c4fd9591.jpeg)
二、R+Python组合拳
1 加载R包
if (!requireNamespace("BiocManager", quietly =TRUE))install.packages("BiocManager")
BiocManager::version()## [1] '3.20'
#当你的bioconductor版本大于4.0时
if(!require(SCENIC))BiocManager::install(c("AUCell", "RcisTarget"),ask = F,update = F);BiocManager::install(c("GENIE3"),ask = F,update = F)#这三个包显然是必须安装的
### 可选的包：
#AUCell依赖包
if(!require(SCENIC))BiocManager::install(c("zoo", "mixtools", "rbokeh"),ask = F,update = F)
###t-SNEs计算依赖包:
if(!require(SCENIC))BiocManager::install(c("DT", "NMF", "ComplexHeatmap", "R2HTML", "Rtsne"),ask = F,update = F)
# #这几个包用于并行计算，很遗憾，Windows下并不支持，所以做大量数据计算时最好转战linux：
if(!require(SCENIC))BiocManager::install(c("doMC", "doRNG"),ask = F,update = F)
#可视化输出
# To export/visualize in http://scope.aertslab.org
if (!requireNamespace("devtools", quietly =TRUE))install.packages("devtools")
if(!require(SCopeLoomR))devtools::install_github("aertslab/SCopeLoomR", build_vignettes =TRUE)#SCopeLoomR用于获取测试数据
if (!requireNamespace("arrow", quietly =TRUE)) BiocManager::install('arrow')
#这个包不装上在runSCENIC_2_createRegulons那一步会报错，提示'dbs'不存在
library(SCENIC)#这就安装好了，试试能不能正常加载
if(!require(SCENIC))devtools::install_github("aertslab/SCENIC")
packageVersion("SCENIC")#这里我安装的是1.3.1## [1] '1.3.1'
library(SCENIC)
library(RcisTarget)
library(AUCell)
library(Seurat)2 R中的预处理
# 初始化SCNIE 设置
data(list="motifAnnotations_mgi_v9", package="RcisTarget")
motifAnnotations_mgi <- motifAnnotations_mgi_v9
scenicOptions <-initializeScenic(org="mgi",#mouse填'mgi', human填'hgnc',fly填'dmel')
dbDir="./data/mouse.mm9/",
nCores=6)#这里可以设置并行计算## Motif databases selected:
## mm9-500bp-upstream-7species.mc9nr.feather
## mm9-tss-centered-10kb-7species.mc9nr.feather
## Using the column 'features' as feature index for the ranking database.
## Using the column 'features' as feature index for the ranking database.
library(Seurat)
# 读取测试对象
scRNA <-readRDS('./data/pbmcrenamed.rds')
# 查看测试对象降维图：
DimPlot(scRNA) ![[图片]](https://i-blog.csdnimg.cn/img_convert/c1f7f6189338c04c6aada0eff1dc7d44.png)
# 获取表达矩阵：
exprMat <-GetAssayData(scRNA ,'RNA','count')
# 转换为矩阵对象：
exprMat <-as.matrix(exprMat)
# 初步过率基因：
genesKept <-geneFiltering(exprMat, scenicOptions)## Maximum value in the expression matrix: 26404
## Ratio of detected vs non-detected: 0.12
## Number of counts (in the dataset units) per gene:
## Min. 1st Qu. Median Mean 3rd Qu. Max.
## 0.0 3.0 48.0 407.6 214.0 187278.0
## Number of cells in which each gene is detected:
## Min. 1st Qu. Median Mean 3rd Qu. Max.
## 0.00 3.00 39.00 99.42 143.00 897.00
##
## Number of genes left after applying the following filters (sequential):
## 11369 genes with counts per gene > 27
## 11338 genes detected in more than 9 cells
## Using the column 'features' as feature index for the ranking database.
## 10021 genes available in RcisTarget database
## Gene list saved in int/1.1_genesKept.Rds
exprMat_filtered <- exprMat[genesKept, ]
# 计算spearman相关性：
runCorrelation(exprMat_filtered, scenicOptions)
# 取log：
exprMat_filtered_log <-log2(exprMat_filtered+1)
# 获取TF的名称：
tf_names =getDbTfs(scenicOptions)
tf_names = Seurat::CaseMatch(
search = tf_names,
match =rownames(exprMat_filtered))
# 导出表达矩阵（需要转置，因为Python中通常是行为样本，列为基因）便于后续Python读取：
write.csv(t(exprMat_filtered), file ="./data/expr_matrix_transposed.csv", row.names =TRUE)
# 导出TF名称列表
write.csv(data.frame(tf_names = tf_names), file ="./data/tf_names.csv", row.names =FALSE)3 Python中完成grnboost
### 以下命令在Python中执行 ###
import pandas as pd
from arboreto.algo import grnboost2
# 读取R导出的数据
expr_matrix = pd.read_csv("data/expr_matrix_transposed.csv", index_col=0)
tf_names = pd.read_csv("data/tf_names.csv")["tf_names"].tolist()
# 确保TF名称在表达矩阵的基因中存在
available_genes = expr_matrix.columns.tolist()
tf_names = [tf for tf in tf_names if tf in available_genes]
# 运行GRNBoost2
adj = grnboost2(
expr_matrix,
tf_names=tf_names,
seed=2023,
verbose=True
)
# 重命名列以匹配R中的预期格式
adj.columns = ['TF', 'Target', 'weight']
# 保存结果（R可以读取的CSV格式）
adj.to_csv("data/grnboost2_results.csv", index=False)以下是运行提示信息：
>>>### 以下命令在Python中执行 ###
>>>import pandas as pd
>>>from arboreto.algo import grnboost2
>>>
>>># 读取R导出的数据
>>> expr_matrix = pd.read_csv("data/expr_matrix_transposed.csv", index_col=0)
>>> tf_names = pd.read_csv("data/tf_names.csv")["tf_names"].tolist()
>>>
>>># 确保TF名称在表达矩阵的基因中存在
>>> available_genes = expr_matrix.columns.tolist()
>>> tf_names = [tf for tf in tf_names if tf in available_genes]
>>>
>>># 运行GRNBoost2
>>> adj = grnboost2(
... expr_matrix,
... tf_names=tf_names,
... seed=2023,
... verbose=True
... )
preparing dask client
parsing input
creating dask graph
19 partitions
computing dask graph
shutting down client and local cluster
finished
>>>
>>># 重命名列以匹配R中的预期格式
>>> adj.columns = ['TF', 'Target', 'weight']
>>>
>>># 保存结果（R可以读取的CSV格式）
>>> adj.to_csv("data/grnboost2_results.csv", index=False)4 R语言完成SCENIC的经典4步骤
回到R语言中：
# 读取Python输出的GRN结果
adj <-read.csv("data/grnboost2_results.csv")
# 转换为数据框并设置列名（确保与之前的格式一致）
adj <-as.data.frame(adj)
colnames(adj) <-c('TF', 'Target', 'weight')
# 保存为RDS文件，供后续分析使用
saveRDS(adj, file =getIntName(scenicOptions, 'genie3ll'))
# 验证结果
cat("成功读取GRNBoost2结果，共", nrow(adj), "条调控关系\n")
# 运行经典的SCENIC step1-4
exprMat_log <-log2(exprMat+1)
scenicOptions@settings$dbs <- scenicOptions@settings$dbs["10kb"] # Toy run settings
scenicOptions <-runSCENIC_1_coexNetwork2modules(scenicOptions)
scenicOptions <-runSCENIC_2_createRegulons(scenicOptions, coexMethod=c("top5perTarget")) # Toy run settings
scenicOptions <-runSCENIC_3_scoreCells(scenicOptions, exprMat_log)
scenicOptions <-runSCENIC_4_aucell_binarize(scenicOptions)#将AUCell矩阵二元化
# 保存镜像
save.image('data/biomamba_scenic.rdata')# 这时我们就拥有与纯在R语言中执行SCENIC一样的工程文件：
tree ./int## [01;34m./int[00m
## ├── 1.1_genesKept.Rds
## ├── 1.2_corrMat.Rds
## ├── 1.4_GENIE3_linkList.Rds
## ├── 1.5_weightPlot.pdf
## ├── 1.6_tfModules_asDF.Rds
## ├── 2.1_tfModules_forMotifEnrichmet.Rds
## ├── 2.2_motifs_AUC.Rds
## ├── 2.3_motifEnrichment.Rds
## ├── 2.4_motifEnrichment_selfMotifs_wGenes.Rds
## ├── 2.5_regulonTargetsInfo.Rds
## ├── 2.6_regulons_asGeneSet.Rds
## ├── 2.6_regulons_asIncidMat.Rds
## ├── 3.1_regulons_forAUCell.Rds
## ├── 3.2_aucellGenesStats.pdf
## ├── 3.3_aucellRankings.Rds
## ├── 3.4_regulonAUC.Rds
## ├── 3.5_AUCellThresholds_Info.tsv
## ├── 3.5_AUCellThresholds.Rds
## ├── 4.1_binaryRegulonActivity.Rds
## ├── 4.2_binaryRegulonActivity_nonDupl.Rds
## ├── 4.3_regulonSelections.Rds
## ├── 4.4_binaryRegulonOrder.Rds
## └── tSNE_AUC_50pcs_30perpl.Rds
##
## 0 directories, 23 files
# 读取AUCell Score矩阵：
auc_score <-getAUC(readRDS("int/3.4_regulonAUC.Rds"))
# 添加到注释信息中：
scRNA <-AddMetaData(scRNA,metadata =t(auc_score))
# 小提琴挑几个转录因子瞅瞅：
VlnPlot(scRNA,rownames(auc_score)[1:10],stack = T,
cols =c(ggsci::pal_aaas()(8),ggsci::pal_bmj()(8))
)![[图片]](https://i-blog.csdnimg.cn/img_convert/e4b4ef13f6bca0b30051613c54a3bda9.png)
三、测试文件与演示环境
一切不给测试文件和分析环境版本的教程都是耍流氓，本推送的代码和测试文件可以在以下链接中下载：

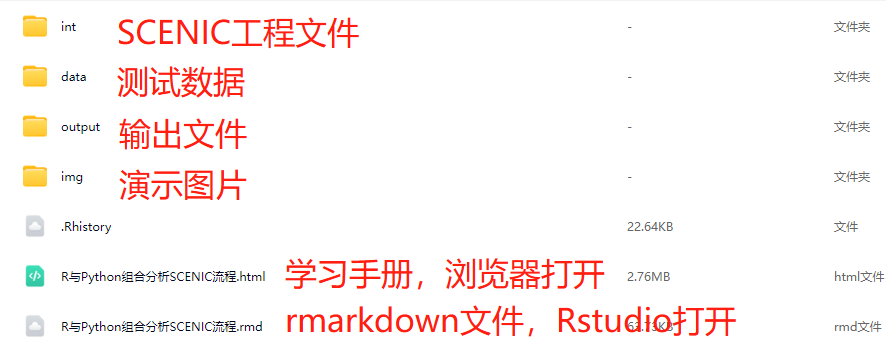

通过网盘分享的文件：R与Python组合分析SCENIC流程
![[图片]](https://i-blog.csdnimg.cn/img_convert/6f99e04886d3e14b21b9705222099c35.png)
链接: https://pan.baidu.com/s/1DQdzV7QzuwJ89-Cs7xsnmQ?pwd=tfdx
提取码: tfdx
R语言演示环境：
sessionInfo()## R version 4.4.2 (2024-10-31)
## Platform: x86_64-pc-linux-gnu
## Running under: Ubuntu 20.04.4 LTS
##
## Matrix products: default
## BLAS: /usr/lib/x86_64-linux-gnu/openblas-pthread/libblas.so.3
## LAPACK: /usr/lib/x86_64-linux-gnu/openblas-pthread/liblapack.so.3; LAPACK version 3.9.0
##
## locale:
## [1] LC_CTYPE=en_US.UTF-8 LC_NUMERIC=C
## [3] LC_TIME=en_US.UTF-8 LC_COLLATE=en_US.UTF-8
## [5] LC_MONETARY=en_US.UTF-8 LC_MESSAGES=en_US.UTF-8
## [7] LC_PAPER=en_US.UTF-8 LC_NAME=C
## [9] LC_ADDRESS=C LC_TELEPHONE=C
## [11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C
##
## time zone: Etc/UTC
## tzcode source: system (glibc)
##
## attached base packages:
## [1] stats graphics grDevices utils datasets methods base
##
## other attached packages:
## [1] Seurat_5.2.1 SeuratObject_5.0.2 sp_2.2-0 AUCell_1.28.0
## [5] RcisTarget_1.26.0 SCopeLoomR_0.13.0 SCENIC_1.3.1
##
## loaded via a namespace (and not attached):
## [1] RcppAnnoy_0.0.22 splines_4.4.2
## [3] later_1.4.1 bitops_1.0-9
## [5] tibble_3.2.1 R.oo_1.27.0
## [7] polyclip_1.10-7 graph_1.84.1
## [9] XML_3.99-0.18 fastDummies_1.7.5
## [11] lifecycle_1.0.4 globals_0.16.3
## [13] lattice_0.22-6 hdf5r_1.3.12
## [15] MASS_7.3-64 magrittr_2.0.3
## [17] plotly_4.10.4 sass_0.4.9
## [19] rmarkdown_2.29 jquerylib_0.1.4
## [21] yaml_2.3.10 remotes_2.5.0
## [23] httpuv_1.6.15 sctransform_0.4.1
## [25] spam_2.11-1 spatstat.sparse_3.1-0
## [27] sessioninfo_1.2.2 pkgbuild_1.4.6
## [29] reticulate_1.43.0.9001 cowplot_1.1.3
## [31] pbapply_1.7-2 DBI_1.2.3
## [33] RColorBrewer_1.1-3 abind_1.4-8
## [35] pkgload_1.4.0 zlibbioc_1.52.0
## [37] Rtsne_0.17 GenomicRanges_1.58.0
## [39] purrr_1.0.2 R.utils_2.12.3
## [41] BiocGenerics_0.52.0 RCurl_1.98-1.16
## [43] GenomeInfoDbData_1.2.13 IRanges_2.40.1
## [45] S4Vectors_0.44.0 ggrepel_0.9.6
## [47] irlba_2.3.5.1 spatstat.utils_3.1-4
## [49] listenv_0.9.1 openintro_2.5.0
## [51] goftest_1.2-3 airports_0.1.0
## [53] RSpectra_0.16-2 spatstat.random_3.4-1
## [55] annotate_1.84.0 fitdistrplus_1.2-2
## [57] parallelly_1.42.0 DelayedMatrixStats_1.28.1
## [59] codetools_0.2-20 DelayedArray_0.32.0
## [61] tidyselect_1.2.1 UCSC.utils_1.2.0
## [63] farver_2.1.2 spatstat.explore_3.4-3
## [65] matrixStats_1.5.0 stats4_4.4.2
## [67] jsonlite_1.8.9 ellipsis_0.3.2
## [69] progressr_0.15.1 ggridges_0.5.6
## [71] survival_3.8-3 tools_4.4.2
## [73] ica_1.0-3 Rcpp_1.0.14
## [75] glue_1.8.0 gridExtra_2.3
## [77] SparseArray_1.6.0 xfun_0.50
## [79] MatrixGenerics_1.18.1 usethis_3.1.0
## [81] GenomeInfoDb_1.42.1 dplyr_1.1.4
## [83] withr_3.0.2 BiocManager_1.30.25
## [85] fastmap_1.2.0 digest_0.6.37
## [87] R6_2.5.1 mime_0.12
## [89] colorspace_2.1-1 scattermore_1.2
## [91] tensor_1.5 spatstat.data_3.1-6
## [93] RSQLite_2.3.9 R.methodsS3_1.8.2
## [95] ggsci_3.2.0 tidyr_1.3.1
## [97] generics_0.1.3 data.table_1.16.4
## [99] usdata_0.3.1 httr_1.4.7
## [101] htmlwidgets_1.6.4 S4Arrays_1.6.0
## [103] uwot_0.2.2 pkgconfig_2.0.3
## [105] gtable_0.3.6 blob_1.2.4
## [107] lmtest_0.9-40 XVector_0.46.0
## [109] htmltools_0.5.8.1 profvis_0.4.0
## [111] dotCall64_1.2 GSEABase_1.64.0
## [113] scales_1.3.0 Biobase_2.66.0
## [115] png_0.1-8 spatstat.univar_3.1-3
## [117] knitr_1.49 rstudioapi_0.17.1
## [119] reshape2_1.4.4 tzdb_0.4.0
## [121] nlme_3.1-168 cachem_1.1.0
## [123] zoo_1.8-12 stringr_1.5.1
## [125] KernSmooth_2.23-26 parallel_4.4.2
## [127] miniUI_0.1.1.1 arrow_18.1.0.1
## [129] AnnotationDbi_1.68.0 pillar_1.10.1
## [131] grid_4.4.2 vctrs_0.6.5
## [133] RANN_2.6.2 urlchecker_1.0.1
## [135] promises_1.3.2 xtable_1.8-4
## [137] cluster_2.1.8 evaluate_1.0.3
## [139] readr_2.1.5 cli_3.6.3
## [141] compiler_4.4.2 rlang_1.1.5
## [143] crayon_1.5.3 future.apply_1.11.3
## [145] labeling_0.4.3 plyr_1.8.9
## [147] fs_1.6.5 stringi_1.8.4
## [149] deldir_2.0-4 viridisLite_0.4.2
## [151] assertthat_0.2.1 munsell_0.5.1
## [153] Biostrings_2.74.1 lazyeval_0.2.2
## [155] spatstat.geom_3.4-1 devtools_2.4.5
## [157] Matrix_1.7-2 RcppHNSW_0.6.0
## [159] hms_1.1.3 patchwork_1.3.0
## [161] sparseMatrixStats_1.18.0 bit64_4.6.0-1
## [163] future_1.34.0 ggplot2_3.5.1
## [165] KEGGREST_1.46.0 shiny_1.10.0
## [167] SummarizedExperiment_1.36.0 ROCR_1.0-11
## [169] igraph_2.1.4 memoise_2.0.1
## [171] bslib_0.9.0 bit_4.5.0.1
## [173] cherryblossom_0.1.0

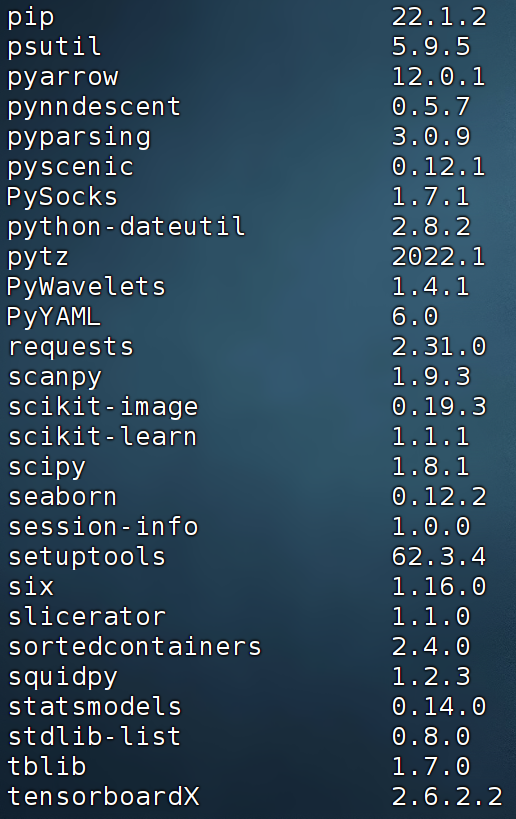

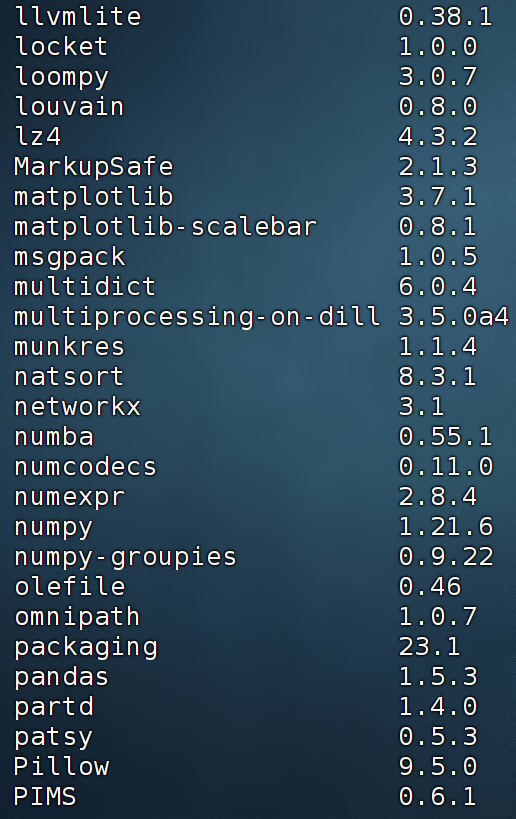

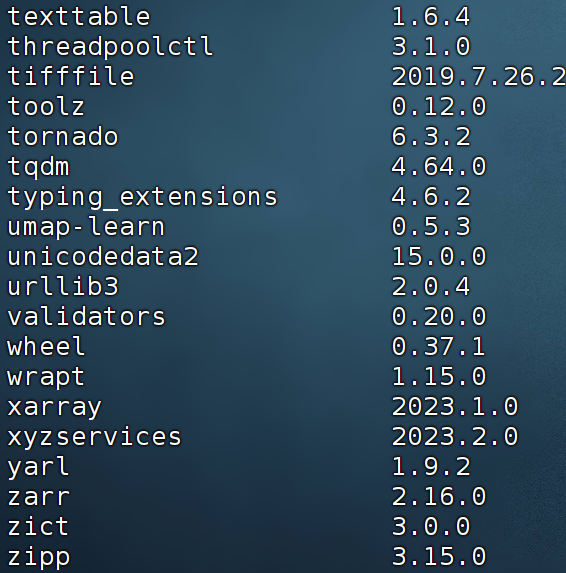

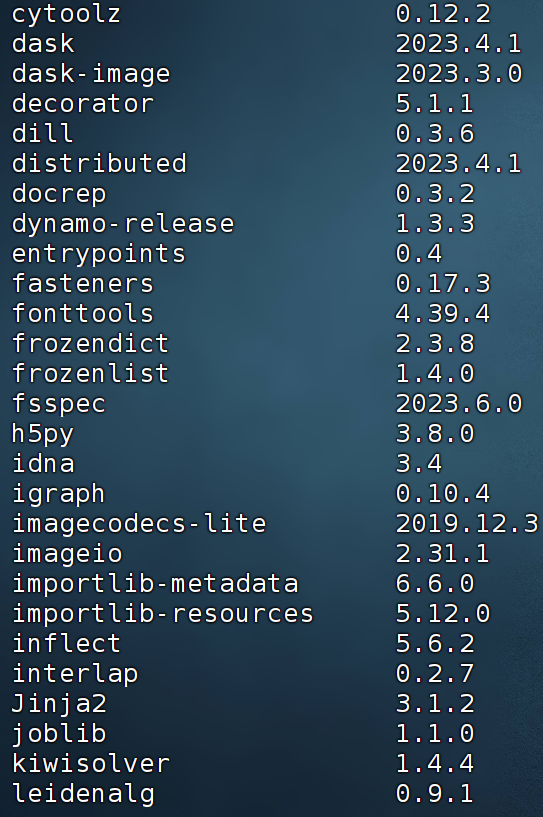

Python环境：
![[图片]](https://i-blog.csdnimg.cn/img_convert/f411c33e7e658eaff8bf36ce1ca7616e.png)
![[图片]](https://i-blog.csdnimg.cn/img_convert/b46504359ac8521b1d91346b03f3b066.png)
![[图片]](https://i-blog.csdnimg.cn/img_convert/9605b1724fed4c622423cc9d1db209d5.png)
![[图片]](https://i-blog.csdnimg.cn/img_convert/e76724e2aa49c3d439a3b1a48641f0fe.png)
![[图片]](https://i-blog.csdnimg.cn/img_convert/a5bc20966dbcdc7f111c61271c49e334.png)
这里是“一人公司”的成长家园。我们提供从产品曝光、技术变现到法律财税的全栈内容，并连接云服务、办公空间等稀缺资源，助你专注创造，无忧运营。
更多推荐
9
0- 0
已为社区贡献1条内容
所有评论(0)
